AT2327辐射监测器(车辆辐射检测器)

2327transportnyy-2

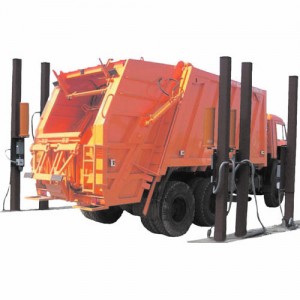

基于AT2327辐射检测仪制成的通道式辐射监测系统,用于检测通过检查点车辆的辐射剂量。

描述

操作原理

车辆辐射监测系统是基于BDKG-11/1BDKG-19智能辐射检测探头制成的。

开启系统后,辐射监测器自动转换为本底辐射测量模式。测量完成后系统计算辐射阈值,此时仪器闪烁黄灯提示。计算完辐射阈值后闪烁绿灯,提示仪器准备工作。

当车辆通过检测器时,安装在检测器头部的红外传感器能够检测车辆位置,并将辐射检测仪从本底测量模式切换到辐射检测模式。

在检测模式中,传感器通过RS485接口将数据传送到计算机。当辐射剂量率超过阈值时,系统会通知工作人员检查放射源。系统会在屏幕上显示探头编号和探测时间。

当辐射剂量超过阈值或系统内部件失灵时,会闪烁红灯,并在屏幕上显示危险区域。排除故障或找到问题后,传感器自动重置并重新计算阈值。

控制面板用于设置阈值计算参数、查看智能探头状态、校准实时时钟、设置密码、查看测量数据等工作。

如果需要,智能探头可以加装中子探测器。



应用

l  道路检查点

l  公共安全和核废料处理

l  核工业设施的燃料处理和存储

l  废弃金属处理和打捞



特点

l  在一个探测器中最多安装10个高灵敏度探头

l  检测到车辆通过时,自动切换本底测量模式和辐射监测模式

l  检测器四周使用铅屏蔽

l  报警阈值根据环境本底自动变化

l  超阈值声光报警

l  在操作过程中系统自动自检

l  可以调整探测范围

l  显示环境参数

l  自动记录环境本底和超阈值事件

l  备用电池可最多使用6小时



AT2327检测仪符合:

国际标准:IEC61017-1:1991EN50371:2002

国际安全标准:IEC61010-1:1990

国际电磁辐射标准:EN55022:1998+A1:2000+A2:2003EN55024:1998+A1:2001+A2:2003

IEC61000-4-2:2006IEC61000-4-4:2004IEC61000-4-5:2005

IEC61000-4-11:2004等标准



AT2327具有白俄罗斯、俄罗斯、乌克兰和哈萨克斯坦的标准认证。



应用领域

l  海关和边境检查

l  核安全

l  冶金工业



技术参数

检测器(闪烁体)

BDKG-11/1 NaITI)φ63x63mm

BDKG-19 NaITI)φ63x160mm

灵敏度

对于241Am

BDKG-11/18160cps/uSv/h

BDKG-1932540cps/uSv/h

对于137Cs

BDKG-11/11970cps/uSv/h

BDKG-194910cps/uSv/h

对于60Co

BDKG-11/11090cps/uSv/h

BDKG-192840cps/uSv/h

灵敏度(对于137Cs接近密封壳十字叉丝位置)

BDKG-11/160.8±12.1cps/kBq

BDKG-19120±24cps/kBq

最大统计粒子数

BDKG-11/1BDKG-19:≥5x104s-1

能量范围:0.05-3MeV

误报率:≤11000粒子

连续测量时间

电源供电:≥24h

可充电电池:≥6h

车辆最大速度:5km/h

检测时间:≤20s

车宽:5m

最长电缆距离:≤1000m

工作温度

控制面板:+5+40

探测器:-30+50

相对湿度

探测器:≤95%

控制面板:≤75%

报警器:三阶段声光报警

开机预热时间:≤5min

防护等级:IP57

电源:230VAC50Hz

尺寸

探测器(封装):φ141x473mm

控制面板:200x160x90mm

警报器:185x85x95mm

光电探测器:80x188x85mm

重量

探测器(封装):8.5kg

控制面板:0.7kg

警报器:0.4kg

光电探测器:0.3kg



配件



技术支持

可下载宣传册
