AT6101,AT6101B能谱仪

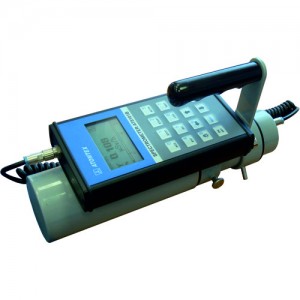

mainphoto_at61016101v_eng

AT6101和AT6101B多功能伽马能谱仪可以用于实验室测量,也可以用于现场测量。仪器可以独立完成核素识别工作,能谱库中包括天然、医疗和工业核素。
另外仪器还有以下功能:寻找和探测放射源、测量伽马辐射剂量率。


描述

特点

l  智能探头

l  可以测量伽马辐射剂量率

l  测量α和β能量密度,并自动扣除环境本底

l  自动稳定能谱能量标度

l  通过温度传感器实现温度补偿

l  声音和灯光报警

l  最多可以记录300个能谱

l  防水密封设计



应用

l  环境辐射监测

l  核废料控制

l  放射源和工业废料控制

l  工业废料检测

l  核工业

l  地质辐射检测

l  核医疗

l  科学研究

l  灾难应急



操作原理

本能谱仪由外部的伽马能谱探测器和处理系统组成。

通过高灵敏度NaI探测器测量伽马能谱、环境伽马剂量率、寻找和识别放射源。

GM计数器用于扩大环境伽马辐射的测量范围,并且连续检测操作人员接收到的辐射剂量。

仪器可以另外加装探头测量被污染表面α和β的能量密度。



AT6101AT6101B能谱仪符合IEC62327:2006标准

国际安全标准:IEC61010-1:1990

国际电磁辐射标准:EN55022:1998+A1:2000+A2:2003EN55024:1998+A1:2001+A2:2003

IEC61000-4-2:2001IEC61000-4-3:2008等标准



此能谱仪具有白俄罗斯、俄罗斯、乌克兰和哈萨克斯坦的标准认证。



应用领域

l  海关和边境检测

l  核安全

l  核工业



技术参数

探测器

AT6101BDKG-05):NaITI)φ40x40mm

AT6101BBDKG-11):NaITI)φ63x63mm

处理单元:GM计数器

能量范围

伽马辐射:20keV-3MeV

α辐射(BDPA-01):4-7MeV

β辐射(BDPB-01):155keV14C-3.5MeV106Ru+106Rh

核素识别:工业、天然、医疗核素

可选服务:能谱库中的能谱可以更改

能量分辨率(对137Cs):≤7.5%BDKG-05)≤8%BDKG-11

最大统计粒子数:≥5x104s-1

积分非线性:最大1%

测量时间(对137Cs,活度为50Bq,距离为20cm):≤2s

灵敏度

241Am6000cps/uSv/hBDKG-05),13500cps/uSv/hBDKG-11

137Cs760cps/uSv/hBDKG-05),2200cps/uSv/hBDKG-11

60Co400cps/uSv/hBDKG-05),1200cps/uSv/hBDKG-11

测量范围

0.01-300uSv/hBDKG-05

0.01-100uSv/hBDKG-11

1uSv/h-10mSv/hGM计数器)

能量密度测量范围

α:0.5-105p/(min.cm2)

β:3-5x105p/(min.cm2)

固有误差:±20%

通道数:512

开机预热时间:≤1min

连续测量时间:≥12h

工作温度:-2050

相对湿度:≤95%

防护等级:IP54

电源:内部电池

尺寸和重量

BDKG-05:φ62x320mm1.2kg

BDKG-11:φ80x345mm1.9kg

BDPA-01:φ87x205mm0.55kg

BDPB-01:φ87x205mm0.65kg

处理单元:110x230x38mm0.8kg



配件
